| Article number | 300-0031 |
|---|---|

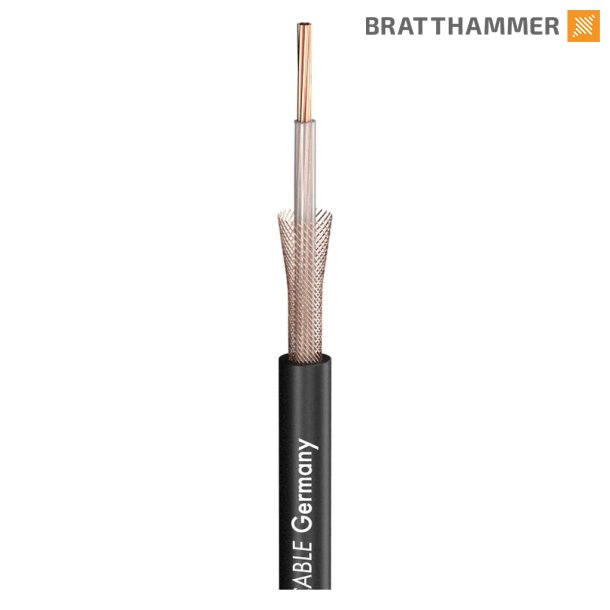

| Name | SC-Onyx Tynee |
| EAN | 4049371002080 |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Studio / Broadcast |
| Application area | Installation |
| Application | Patch & Instrument Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | asymmetrical |
| Construction | LI2YDY1x0,22mm2 |
| Jacket material | PVC |
| Jacket Ø mm | 4,00 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 1 |
| Inner conductor (audio) mm² | 0,22 |
| Inner conductor Ø (audio) mm | 0,53 |
| AWG (audio) | 24 |
| Shielding | Copper spiral shielding |
| Shielding factor % | 95 |
| Copper strands (audio) | 7 |
| Copper strand Ø (audio) mm | 0,20 |
| Conductor insulation material | PE |
| Weight per 1 m g | 18 |
| UV-resistant | yes |
| Fire load per m kWh | 0,12 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. °C | -20 |
| Temperature max. °C | 70 |
| Width mm | 4 |
| Height mm | 4 |
| Capac. cond./shield. per 1 m (audio) pF | 125 |
| Capacity wire/electic screen at 1 ft. (audio) pF | 38,1 |
| Insulation resist. per 1 km GO | 1 |
| Insulation resist. per 1000 feet GO | 0,3048 |
| Insulation resist. per 1 km (audio) GO | 1 |
| Insulation resist. per 1000 feet (audio) GO | 0,3048 |
| Conductor resistance per 1 km O | 85 |
| Conductor resistance per 1000 ft. O | 25,908 |
| BPVo-Euroclass | Fca |
199-001-282
Bestilles opp ved ordre
54,75 NOK
(inkl. mva.)
