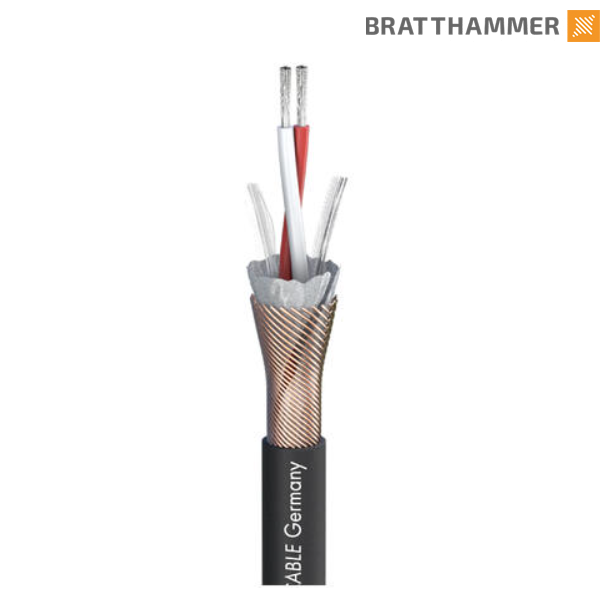

AES/EBU DMX-kabel Sommercable Semicolon 2

AES/EBU DMX-kabel Sommercable Semicolon 2

44,55 NOK

(inkl. mva.)

Veil. salgspris 44,55 NOK (inkl. mva.)

Ingen produktomtale
Modell/varenr.: 199-010-010
Vekt: 0,06 kg.
Lagerstatus: Bestilles opp ved ordre
meter

Advantages:

  • Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece
  • Compact and hence space-saving

Application:

  • Professional studio and microphone technology
  • Connection of effects and control units which require a return signal
  • Industrial technology and medical engineering
  • Professional MIDI-technology, transfer cable
  • High-end connection of hifi components
  • Control of lighting and scanner systems and displays




Specifications:

Article number 520-0101
Name SC-Semicolon 2 AES/EBU
EAN 4049371226783
Properties Digital 110 O AES / EBU
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application DMX
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,22mm²)(ST)DY
Jacket material PVC
Jacket Ø mm 5,00
Number of Channels (AES/EBU, DMX) 1
Inner conductor (AES/EBU, DMX) 2
Inner conductor (AES/EBU, DMX) mm² 0,22
Inner conductor Ø (AES/EBU, DMX) mm 0,53
AWG (AES/EBU, DMX) 24
Shielding Copper spiral sleeve + AL-fleece
Shielding factor % 100
Copper strands (AES/EBU, DMX) 28
Copper strand Ø (AES/EBU, DMX) mm 0,10
Conductor insulation material Foam / Skin-PE
Weight per 1 m g 33
Fire load per m kWh 0,13
Style variant round
Packing 500 m spool
Packing 100 m spool
Temperature min. °C -25
Temperature max. °C 70
Width mm 5
Height mm 5
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF 45
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF 13,716
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF 95
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF 28,956
Impedance O 110
Insulation resist. per 1 km GO 1
Insulation resist. per 1000 feet GO 0,3048
Insulation resist. per 1 km (AES/EBU, DMX) GO 1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO 0,3048
Conductor resistance per 1 km O 80
Conductor resistance per 1000 ft. O 24,384
BPVo-Euroclass Fca
