Nyhet

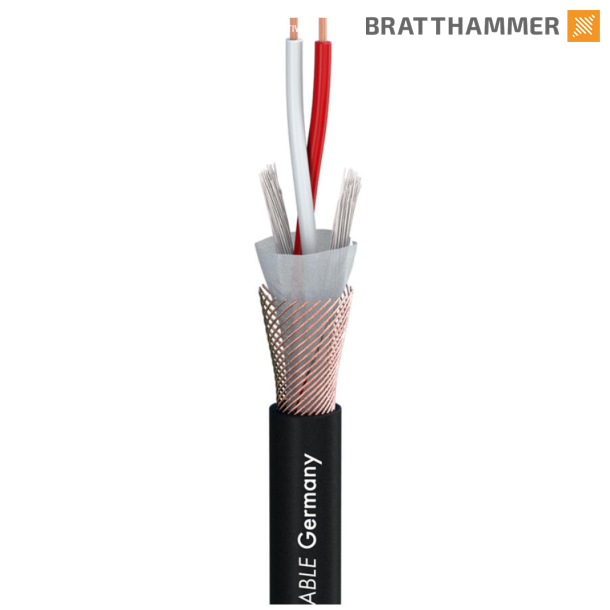

AES/EBU DMX-kabel Sommercable Binary 234 MKII DMX-kabel

AES/EBU DMX-kabel Sommercable Binary 234 MKII DMX-kabel

51,34 NOK

(inkl. mva.)

Veil. salgspris 51,34 NOK (inkl. mva.)

Ingen produktomtale
Modell/varenr.: 199-010-011
Vekt: 0,06 kg.
Lagerstatus: Bestilles opp ved ordre
meter

Advantages:

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding due to the use of a helical copper mesh screen plus
    an aluminium-vaporised fleece
  • Extremely rugged due to the special tough jacket
  • Only a little more expensive than a standard microphone cable

Application:

  • Networking of scanners, lighting systems, digital mixing consoles etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT recorders etc.




Specifications:

Article number 520-0051
Name Binary 234 AES/EBU MKII
EAN 4049371002349
Properties Analog
Properties Digital 110 O AES / EBU
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application DMX
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,34mm²)(ST)DY
Jacket material PVC
Jacket Ø mm 6,20
Number of Channels (AES/EBU, DMX) 1
Inner conductor (AES/EBU, DMX) 2
Inner conductor (AES/EBU, DMX) mm² 0,34
Inner conductor Ø (AES/EBU, DMX) mm 0,66
AWG (AES/EBU, DMX) 22
Shielding Copper spiral shielding + aluminum steamed fleece
Shielding factor % 100
Copper strands (AES/EBU, DMX) 19
Copper strand Ø (AES/EBU, DMX) mm 0,15
Conductor insulation material Foam / Skin-PE
Conductor insulation Ø mm 1,50
Weight per 1 m g 50
UV-resistant yes
Fire load per m kWh 0,17
Style variant round
Packing 100 m spool
Temperature min. °C -25
Temperature max. °C 70
Width mm 6,2
Height mm 6,2
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF 63
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF 19,2024
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF 115
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF 35,052
Impedance O 110
Insulation resist. per 1 km GO 1
Insulation resist. per 1000 feet GO 0,3048
Insulation resist. per 1 km (AES/EBU, DMX) GO 1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO 0,3048
Conductor resistance per 1 km O 53
Conductor resistance per 1000 ft. O 16,1544
Shield. resistance per 1 km O 28
Shield. resistance per 1000 ft. O 8,5344
BPVo-Euroclass Fca
