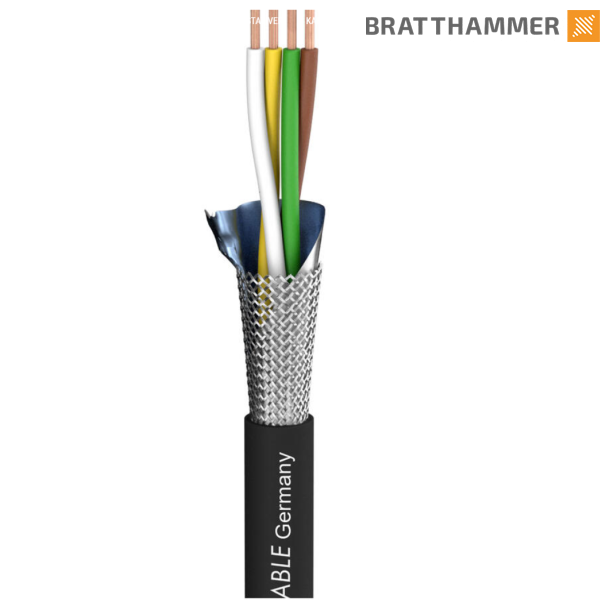

AES/EBU DMX-kabel Sommercable 4-leder

AES/EBU DMX-kabel Sommercable 4-leder

79,20 NOK

(inkl. mva.)

Veil. salgspris 79,20 NOK (inkl. mva.)

Ingen produktomtale
Modell/varenr.: 199-011-022
Vekt: 0,06 kg.
Lagerstatus: Bestilles opp ved ordre
meter

Specifications:

Article number 540-0051PE
Name Binary 434 DMX512
EAN 4049371002400
Properties Analog
Properties In-ground / burial
Properties Digital 110 O AES / EBU
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application DMX
Colour black
Colour detailed black
Signal transmission symmetrical
Construction 2(2LI2YS0,34mm²)(ST)CY
Jacket material PE
Jacket Ø mm 7,00
Number of Channels (AES/EBU, DMX) 1
Inner conductor (AES/EBU, DMX) 4
Inner conductor (AES/EBU, DMX) mm² 0,34
Inner conductor Ø (AES/EBU, DMX) mm 0,66
AWG (AES/EBU, DMX) 22
Shielding Copper-cross mesh, tined + AL / PT foil
Shielding factor % 100
Copper strands (AES/EBU, DMX) 7
Copper strand Ø (AES/EBU, DMX) mm 0,25
Conductor insulation material PE
Conductor insulation Ø mm 1,70
Weight per 1 m g 65
UV-resistant yes
Fire load per m kWh 0,22
Style variant round
Packing 100 m spool
Temperature min. °C -25
Temperature max. °C 70
Width mm 7
Height mm 7
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF 58
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF 17,6784
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF 100
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF 30,48
Impedance O 110
Insulation resist. per 1 km GO 5
Insulation resist. per 1000 feet GO 1,524
Insulation resist. per 1 km (AES/EBU, DMX) GO 5
Insulation resist. per 1000 feet (AES/EBU, DMX) GO 1,524
Conductor resistance per 1 km O 53
Conductor resistance per 1000 ft. O 16,1544
Shield. resistance per 1 km O 15
Shield. resistance per 1000 ft. O 4,572
BPVo-Euroclass Fca
