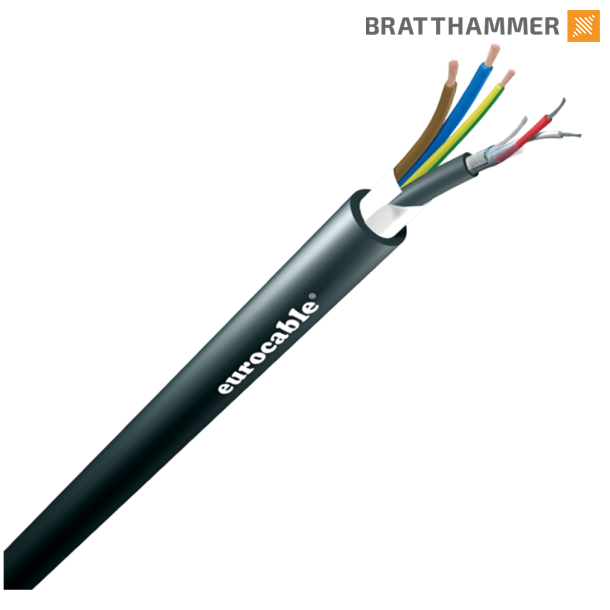

Eurocable's Powered-AES/EBU Digital Audio + Power Hybrid Cables are designed to be highly effective for various professional audio settings, particularly on stages, in delay and main speaker systems, or with self-powered systems. Their unique design merges power and audio in a single cable, ensuring interference-free operation and reducing the need for multiple cables. These cables are available in different configurations to meet diverse requirements.
● Additional information
| General Data | |
|---|---|
| Application | Mobile |
| Cable O.D. (mm) | 11.8 |
| Signal Type | Power |
| Signal Type | Analog Audio |
| Standard Reels (m) | 305 |
| Reel dimensions (cm) | 50x50x32 |
| Reel Weight (kg) | 3.5 |
| Outer Jacket Nominal Thickness (mm) | 1 |
| Standards and Compliance | |
| Flame Retardancy | IEC 60332-1-2 |
| General Data - Audio | |
| Pairs | 1 |
| Mechanical Data | |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (Kg/100m) | 19.60 |
| Conductor - Audio | |
| Quantity | 2 |
| Area (mm²) | 0.129 |
| AWG | 26 |
| Material | Flexible electrolytic tinned copper |
| Shield - Audio | |
| Material | Electrolytic Tinned Copper |
| 2nd Shield Material | Al/PET tape |
| Conductor - Power | |
| Quantity | 3 |
| Area (mm²) | 2.5 |
| AWG | 13 |
| Material | Flexible electrolytic bare copper |
| Jacket | |
| Color | Black |
| Material | PVC |
Hybridkabel Eurocable 1x Cat6, 1x Digital, 1x Power
199-020-242
Bestilles opp ved ordre
226,25 NOK
(inkl. mva.)
Hybridkabel Eurocable 2x Cat6, 2x Digital, 1x Power
199-020-245
Bestilles opp ved ordre
355,40 NOK
(inkl. mva.)
