(inkl. mva.)For everyone needing a long line...

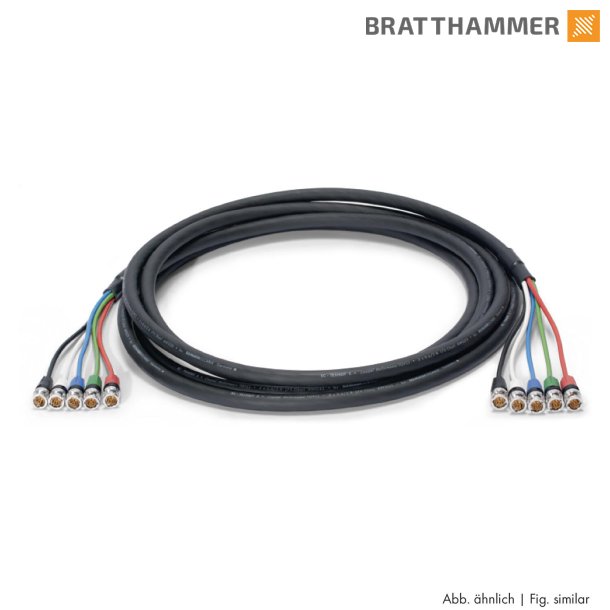

our however is recommenced for extreme lengths exceeding 40 m. But it is also preferred for short distances in professional video studios where it guarantees an image which is totally devoid of shadows and flickering. The Transit 5 HD impresses with its high flexibility, extended functionality and dual shielding (Cu mesh screen + AL/PT foil) of the single wires.
Advantages:
- Dependable and very high-quality image transmission over long distances
- Very good damping and transmission values even with excessive lengths
- Highly flexible due to special jacket compound and tight litz wire stranding
- Cable reel rollable
Application:
- For permanent installation over long distances (theatres, sports arenas,
media & conference centres) - Multi-coax cable reel
Specifications:
| Article number | 600-0851-05 |
|---|---|
| Name | Transit 5 HD |
| EAN | 4049371000550 |
| Properties | OFC oxygen free copper |
| Properties | HDTV |
| Properties | SDI |
| Properties | Analog |
| Properties | Digital 75 O |
| Application area | ELA 100 V |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application | video cable |
| Colour | black |
| Colour detailed | black |
| Construction | 5x2YS(ST)CY0,6/2,8 |
| Construction (video) | 2YS(ST)CY0,6/2,8 |
| Jacket material | PVC |
| Jacket Ø mm | 13,80 |
| Number of Channels (video) | 1 |
| Inner conductor (video) | 5 |
| Inner conductor (video) mm² | 0,28 |
| Inner conductor Ø (video) mm | 0,60 |
| AWG (video) | 23 |
| Shielding | Copper braiding tin-plated 90 % + AL / PT-foil |
| Shielding factor % | 100 |
| Copper strands (video) | 1 |
| Copper strand Ø (video) mm | 0,60 |
| Conductor insulation material | Gas-injected Foam / Skin-PE |
| Conductor insulation Ø (video) mm | 2,80 |
| Weight per 1 m g | 220 |
| UV-resistant | yes |
| Fire load per m kWh | 1,14 |
| Style variant | round |
| Packing | bulk stock |
| Temperature min. °C | -30 |
| Temperature max. °C | 70 |
| Max. transmission distance (SDI) m | 180 |
| Max. transmission distance (HD-SDI) m | 120 |
| Max. transmission distance (3G) m | 60 |
| Width mm | 13,8 |
| Height mm | 13,8 |
| Capacity wire/electic screen at 1m (video) pF | 55 |
| Capacity wire/electic screen at 1 ft. (video) pF | 16,764 |
| Damping at 5 MHz (100m & 20° C) dB | 8,7 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB | 2,6518 |
| Damping at 50 MHz (100m & 20° C) dB | 9,8 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB | 2,987 |
| Damping at 100 MHz (100m & 20° C) dB | 11,2 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB | 3,4138 |
| Damping at 200 MHz (100m & 20° C) dB | 13,9 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB | 4,2367 |
| Damping at 470 MHz (100m & 20° C) dB | 20,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB | 6,3703 |
| Damping at 862 MHz (100m & 20° C) dB | 29,9 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB | 9,1135 |
| Damping at 1000 MHz (100m & 20° C) dB | 32,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB | 10,0279 |
| Damping at 1485 MHz (100m & 20° C) dB | 42 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB | 12,8016 |
| Damping at 1750 MHz (100m & 20° C) dB | 46,3 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB | 14,1122 |
| Damping at 2150 MHz (100m & 20° C) dB | 51,7 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB | 15,7582 |
| Damping at 3000 MHz (100m & 20° C) dB | 59,1 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB | 18,0137 |
| Impedance O | 75 |
| BPVo-Euroclass | Fca |
